2016 Bmw R Nine T 1200

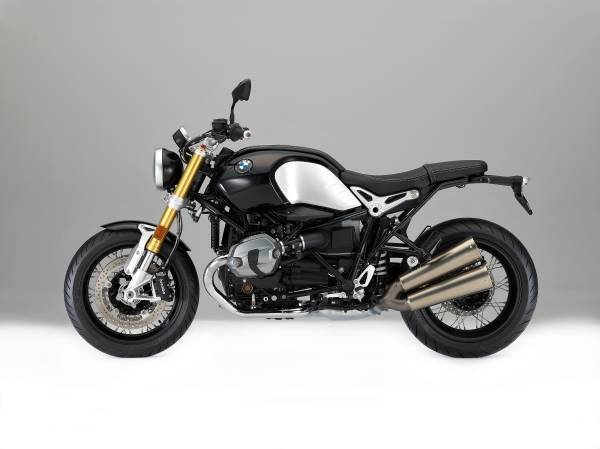

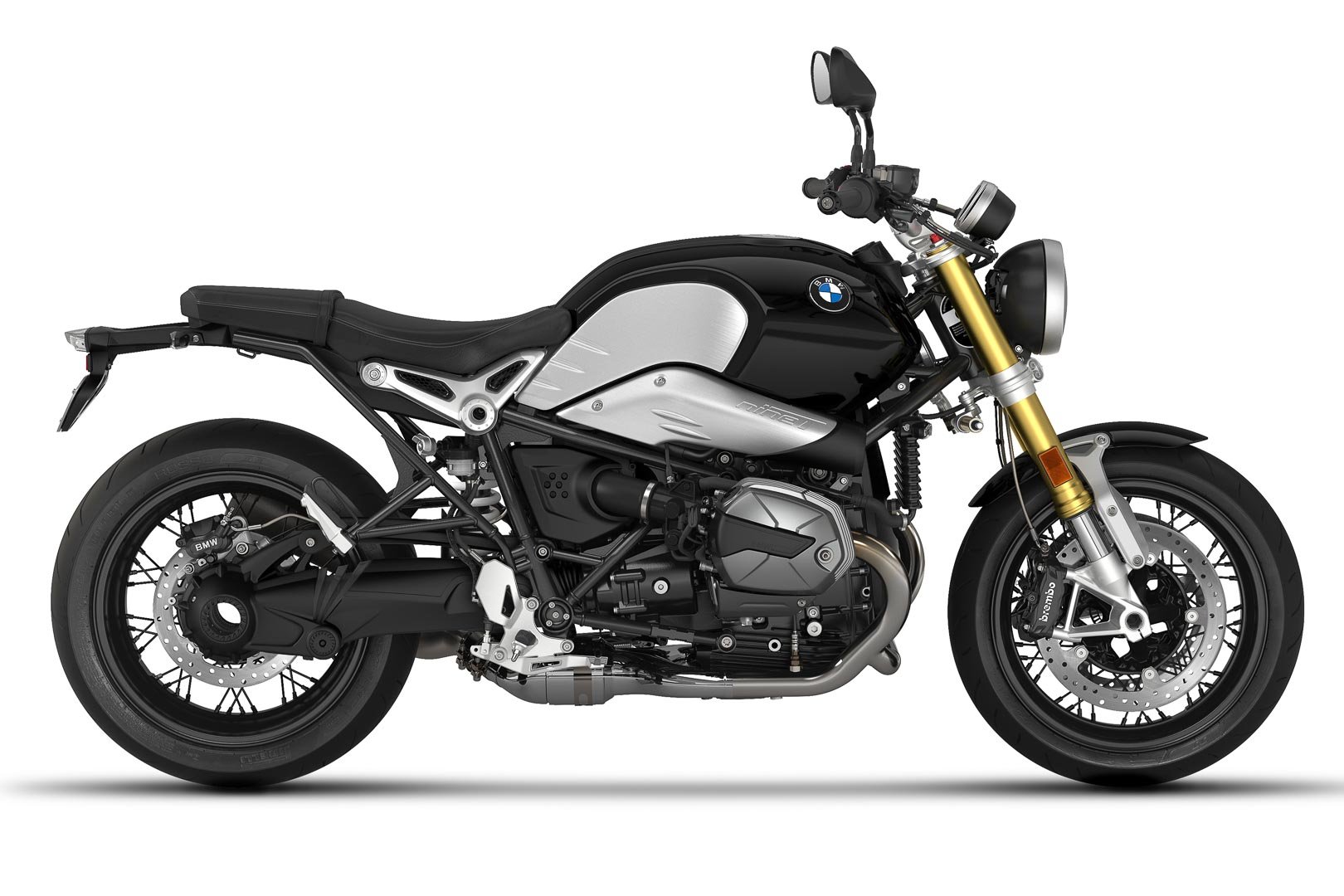

2016 BMW R nine T 1200

Engine and transmission
Displacement 1170.0 ccm (71.39 cubic inches)
Engine type Two cylinder boxer, four-stroke
Engine details Radially aligned valves per cylinder, central balancer shaft
Power 110.0 HP (80.3 kW)) @ 7500 RPM
Torque 119.0 Nm (12.1 kgf-m or 87.8 ft.lbs) @ 6000 RPM
Compression 12.0:1
Bore x stroke 101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves per cylinder 4
Fuel system Injection. Electronic intake pipe injection Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Cooling system Oil & air
Gearbox 6-speed
Transmission type Shaft drive (cardan)   (final drive)
Clutch Single dry plate clutch, hydraulically operated
Driveline Constant mesh
Fuel consumption 4.50 litres/100 km (22.2 km/l or 52.27 mpg)
Greenhouse gases 104.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis, suspension, brakes and wheels
Frame type Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Rake (fork angle) 25.5°
Trail 103 mm (4.0 inches)
Front suspension Upside-Down telescopic fork with 46 mm diameter
Front wheel travel 120 mm (4.7 inches)
Rear suspension Ast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear wheel travel 135 mm (5.3 inches)
Front tire 120/70-ZR17
Rear tire 180/55-ZR17
Front brakes Double disc. ABS. Floating discs. Four-piston calipers.
Diameter 320 mm (12.6 inches)
