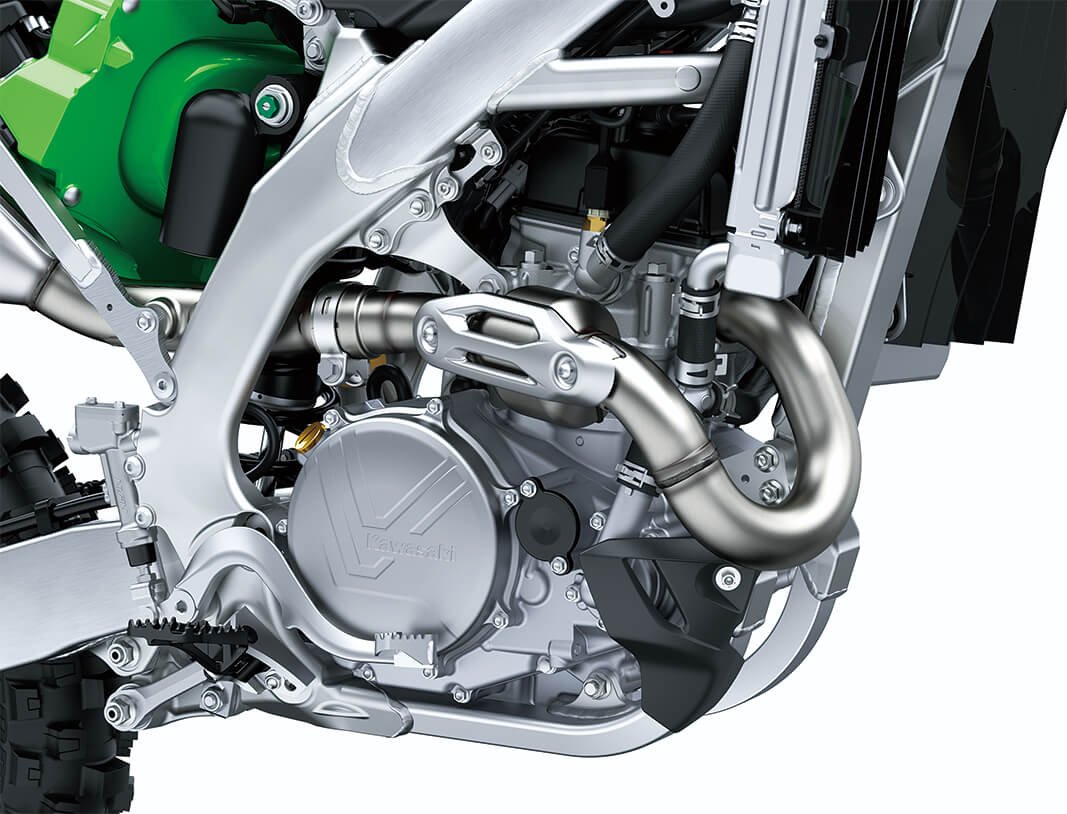

Engine
Engine type Liquid-cooled, 4-stroke Single
Compression ratio 12.5:1
Valve system DOHC, 4 valves
Bore x stroke 96.0 x 62.1 mm
Displacement 449 cm³
Fuel system Fuel injection: Ø 44 mm x 1
Ignition Digital DC-CDI
Starting System Electric
Lubrication Forced lubrication, semi‑dry sump
Brakes & Suspension
Brakes, front Single semi-floating 270 mm petal disc. Caliper: Dual-piston
Brakes, rear Single 250 mm petal disc. Caliper: Single-piston
Suspension, front 49 mm inverted telescopic fork with adjustable compression and rebound damping.
Suspension, rear New Uni-Trak with adjustable dual-range (high/lowspeed) compression damping, adjustable rebound damping and adjustable preload.
- Transmission
- 5-speed, return
- Clutch
- Wet multi-disc, manual
- Primary Reduction Ratio
- 2.727 (60/22)
- Gear Ratios 1st
- 1.750 (28/16)
- Gear Ratios 2nd
- 1.412 (24/17)
- Gear Ratios 3rd
- 1.188 (19/16)
- Gear Ratios 4th
- 1.000 (19/19)
- Gear Ratios 5th
- 0.875 (21/24)
- Final drive
- Chain
- Final reduction ratio
- 3.846 (50/13)
Frame & Dimensions
Frame type Perimeter, aluminium
Trail 122 mm
Wheel travel front 305 mm
Wheel travel rear 307 mm
Tyre, front 80/100-21 51M
Tyre, rear 120/80-19 63M
Steering angle L/R 42° / 42°
L x W x H 2,185 x 830 x 1,275 mm
Wheelbase 1,485 mm
Ground clearance 340 mm
Fuel capacity 6.2 litres
Seat height 955 mm
Curb mass 110.0 kg
