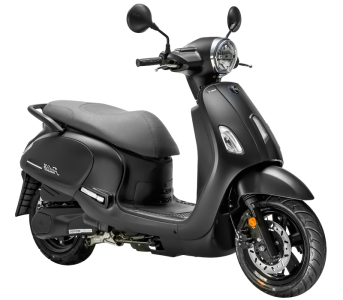

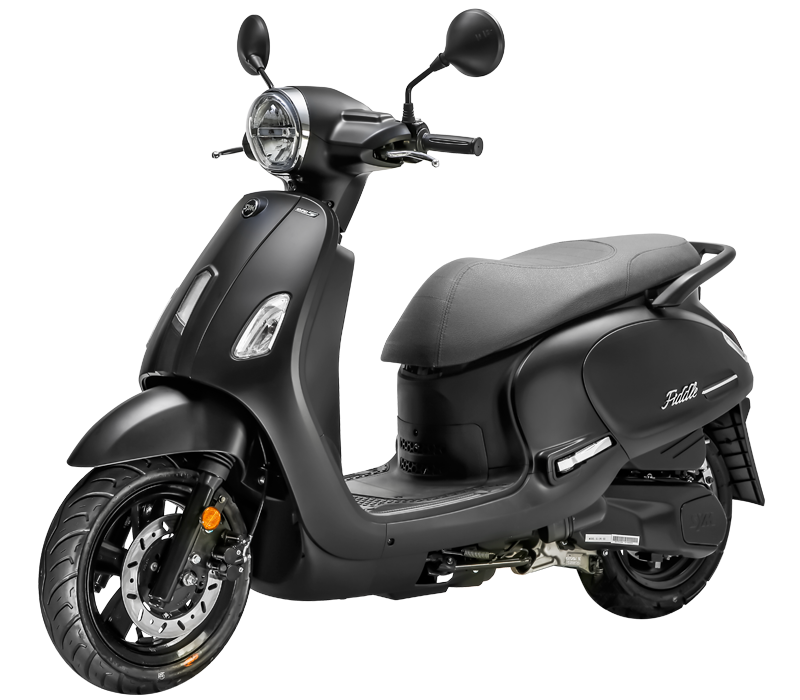

2021 Sym Fiddle III 125cc
Sym Fiddle III 125 Dimensions, Aerodynamics and weight
Frame type Pipe under bone
Seat details -
Wheelbase 1,320 mm (52.0 inches)
Length 1,900 mm (74.8 inches)
Width 690 mm (27.2 inches)
Height 1,130 mm (44.5 inches)
Seat Height -
Alternate Seat Height -
Ground Clearance -
Trail size -
Wheels details -
Front Tyres - Rims dimensions 110/70-12
Rear Tyres - Rims dimensions 120/70-12
Front brakes Single disc
Rear brakes Expanding brake (drum brake)
Front Brakes Dimensions - Disc Dimensions 190 mm (7.5 inches)
Rear Brakes Dimensions - Disc Dimensions 130 mm (5.1 inches)
Curb Weight (including fluids) -
Dry Weight -
Front Percentage of Weight -
Rear Percentage of Weight -
Weight-Power Output Ratio : -
Fuel Tank Capacity 5.20 litres (1.37 gallons)
Reserve Fuel Capacity -
Carrying Details and Capacity -
Front Suspension Telescopic Fork
Front Suspension Travel -
Rear Suspension Unit Swing Arm
Rear Suspension Travel -
Sym Fiddle III 125 Engine and Transmission Technical Data
Engine type - Number of cylinders Single cylinder, four-stroke
Engine details -
Fuel system Carburettor
Engine size - Displacement - Engine capacity 124.60 ccm (7.60 cubic inches)
Bore x Stroke -
Compression Ratio -
Number of valves per cylinder -
Camshaft Valvetrain Configuration -
Maximum power - Output - Horsepower 9.53 HP (7.0 kW)) @ 8500 RPM
Maximum torque 8.51 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 6500 RPM
Engine Maximum RPM -
Cooling system -
Lubrication system -
Engine oil capacity -
Exhaust system -
Gearbox Automatic
Transmission type, final drive ratio Belt
Clutch type -
Driveline CVT
Sym Fiddle III 125 Performance
Top Speed 95.0 km/h (59.0 mph)
Acceleration 0 to 100 km/h (0 to 62 mph) -
Acceleration 0 to 400m (1/4 mile) -
Recuperation 60 to 140 km/h in highest gear -
Fuel Consumption - MPG - Economy - Efficiency -
CO2 emissions -
Emissions -
Sym Fiddle III 125 Electrical Systems, Ignition and Equipment
Ignition Type -
Electrical Details 12 V 6Ah battery.
Starter Type Electric
Instruments -
Lights -
