GENERAL INFORMATION
Manufacturer
BMW
Model Year
2022
Model

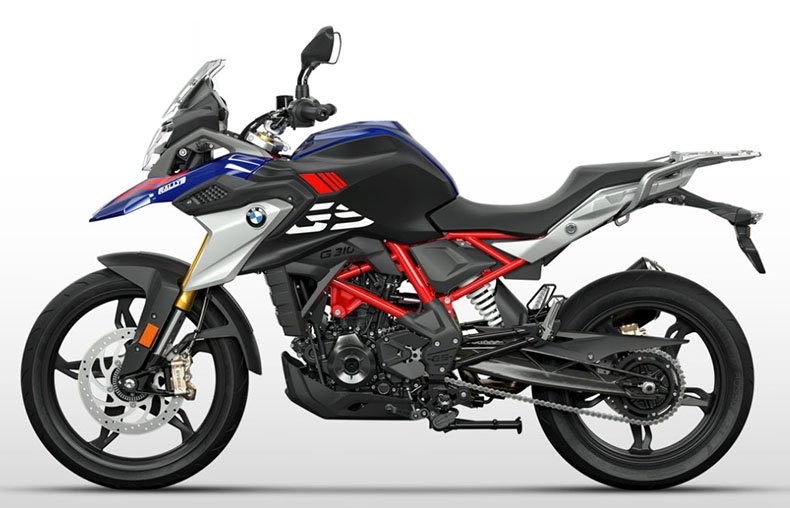

G 310 GS
Model Code
22G2
Color
Rally Style - Kyanite Blue Metallic
BRAKES/WHEELS/TIRES
Brakes
Front - Single disc, diameter 11.8 in., 4-piston fixed caliper, radially mounted
Rear - Single disc, diameter 9.5 in., single-piston floating caliper
BMW Motorrad ABS
Wheels
Cast aluminium
Rims
Front - 2.5 x 19 in.
Rear - 4 x 17 in.
Tires
Front - 110 / 80 R19
Rear - 150 / 70 R17
DIMENSIONS
Length
81.7 in.
Height
Excluding mirrors - 48.8 in.
Width
Excluding mirrors - 34.6 in.
Weight
Unladen, road ready, fully fueled - 386 lb. (*According to Directive (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.)
Wheelbase
55.9 in.
Seat Height
32.8 in. (OE low seat: 32.3 in., OE high seat: 33.4 in.)
Inner leg curve - 73.6 in. (OE low seat: 72.4 in., OE high seat: 74.8 in.)
DRIVETRAIN
Transmission
Gearbox - Constant mesh 6-speed gearbox integrated in crankcase
Drive System
X-ring chain with shock absorption in the real wheel hub
ELECTRICAL
Battery
12 V / 8 Ah, maintenance-free
Alternator
Three-phase 308 W
Lighting
LED headlight, turn indicators and rear light
ENGINE
Engine
4-stroke engine, four valves, two overhead camshafts
Cooling
Water
Cylinders
Single
Horsepower
Rated output - 34 hp @ 9,250 rpm
Displacement
313 cc
Bore x Stroke
80 x 62.1 mm
Torque
Max. - 20 ft. lb. @ 7,500 rpm
Compression Ratio
10.9:1
Clutch
Multi-disc oil bath (anti-hopping) with self-reinforcement
Fuel System
Mixture control - Electronic fuel injection
Exhaust
Stainless steel system
Emissions
Control - Closed-loop 3-way catalytic converter, standard EU-5
Lubrication
Wet sump
Fuel Type
Unleaded regular
Fuel Capacity
Usable tank volume - 3 gal. (11.4 l)
Reserve - Approx. 0.25 gal.
OPERATIONAL
Frame
Tubular space
Front Suspension
Inverted fork, 41 mm
Travel - 7.1 in.
Rear Suspension
Cast aluminum dual swing arm, central spring strut, spring pre-load adjustable
Travel - 7.1 in.
Rake
63.3°
Trail
Caster - 3.9 in.
Maximum Speed
88 mph
Capacity
Permitted total weight - 760 lb.
Payload (with standard equipment) - 374 lb.
Brake Levers
Adjustable brake and clutch levers
Throttle
Electric Ride by Wire
OTHER
Additional Colors
Polar White
Rally Style - Kyanite Blue Metallic| Shipping Cost |
|
